MyWatt 10ch. Wireless Electricity Monitor Model SEM6000 Series and Accessories.  (WORLD BEST PRODUCT)


Home   Building/Factory   Professional  SEM320  SEM330  SEM360  SEM370   SEM390


Our system has the following unique functions:
*10ch. Wireless system with 3-phase clamp type transmitter and plug-in type transmitter both.  (
only 1 maker in the world)

*CE (433MHz), TELEC (JAPAN: 429.2MHz), KC (424.7MHz) , FCC (433MHz) Certificate available. (only 1 maker in the world)

*Remote on-off control and timer control available IHD by Wireless Receiver or PC Software or Web Cloud Service and Smart Phone. (only 1 maker in the world)

*World biggest 6 lcd display IHD. : 30 different function display LCD. (only 1 maker in the world)

*Monthly target and percentage (%) display function IHD.  (only 1 maker in the world)

*Real-time energy consumption and money display for today, this week, this month and last 1 month (31 days) IHD. .  (only 1 maker in the world)

*You can select average billing rate or 6-step tier rate and time-of-use billing rate at any time on IHD. .  (only 1 maker in the world)

*You can select 6 country money symbol (Yen, Wien, Dollar, U.K. Pound, Euro, Korean Won) (only 1 maker in the world)

*You can use up to 3-phase, 500A current clamp for factory or building application (only 1 maker in the world)

*Web cloud service has real-time, total energy and money display for daily, weekly, monthly, yearly and 10 years graph and data download service and dash board display. (only 1 maker in the world)

*We could download 1 minute interval data for a day on web cloud service and 1 hour interval service for a month. (
only 1 maker in the world)


*If you use MyWatt Cloud SEM6000 model and connect to Internet by LAN cable, the calendar & clock is calibrating automatically. (only 1 maker in the world)

homepage: http://mywatt.biz   product & price:  http://mywatt.biz/model/index3.htm
web cloud service site:  http://mywatt.org       pc software for sem3000 & sem6000 receiver: http://mywatt.biz/m
App service:  Android  "mywatt30"           Modubus RS-485 software for CRT5000  : We supply free for the buyer.  http://mywatt.biz/crt5000
Web cloud service sample:  http://mywatt.biz/cloud




MyWatt 10ch. Wireless Electricity Monitor System

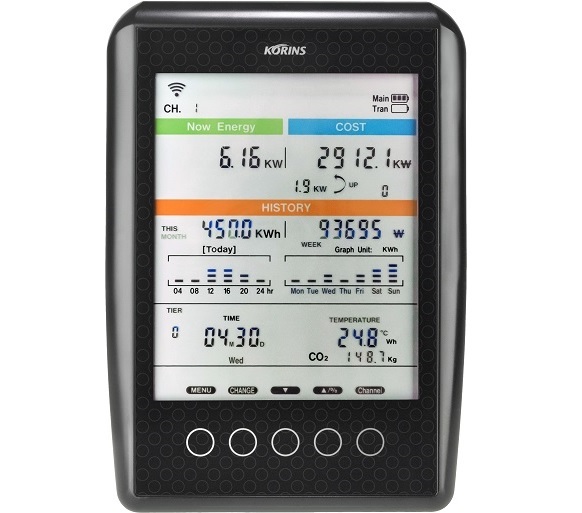

MyWatt (SEM6000)

*433MHz wireless electricity monitor. Maximum distance 50M at home. (Maximum distance 1000m at open sight.)
*Displays instantaneous power and 1 month estimated energy cost with that power.
*Displays today/this week/this month/31days total power usage and the cost.
*Provide monitoring of changing power gap when home appliances are turned on and off.
*Displays the percentage between this month target power vs. now.
*Displays today and this week graph.
*Displays 10 channel energy data by using 10 transmitters.
*Optical sensors can be supplied for the pulse output electricity totalizer (option)
*Supply 30A, 75A clamp for household and also supply 200A, 350A and 500A clamp for Industrial application. (option)
*Using free PC software, you can see hour/day/week/month/year graph on PC.
*Display CO2 consumption by calculating the power usage
*Average energy cost setting, 2 to 6 step cost promotion setting is possible. Other ordered setting also possible.
*Calendar & Clock display
*Displays battery power on LCD
*Displays single or 3-phase clamp connection on LCD
*Displays RF433MHz power strength on LCD.
*4 Alarm display on LCD: BLACK OUT time display, peak energy over display, Daily and weekly energy target over display.



MyWatt Cloud Extra Functions


*Shows up to 200kW instant electricity energy display on monitor.
*Connect to Internet by LAN cable connection
*Provide Max. 10Ch. Electricity and temperature graph on a web page.
*Provide Today/this week/this month/this year/10year graph.
*Provide the graph comparison for day/week/month/year)
*Provide Dash board. (today/yesterday, this week/last week, this month/last month, this year/last year)
*Provide data downloadable function for 1 month electricity with 1 hour interval)
*Provide the system location map
*Provide remote or on-off control of 10channel home appliances by using smart phone or website.
*Provide daily/weekly/monthly/yearly/10 year graph.
*Provide average energy cost setting and cost display of day/week/month/year.
*Provide free web cloud service for 2Ch. From 3ch. To 10 ch., yearly contract is necessary (option)
*Provide receiver clock automatic calibration when LAN or Wi-Fi line connection (In case of SEM3110AWIFI model).
*Email alarm when peak over power consumption (selection)
*Email service for day/week/month energy usage (selection)
*SMS service for the above alarm and energy usage (option)
*Max. 999ch. Site management (option)
*Consulting service for energy saving (option)

Korean Catalog   English Catalog Japanese Catalog

MyWatt 10ch. Wireless Electricity Receiver & Monitor


Model Brand & Product Supply Clamp Maximum wattage measurement Price ($)
List Price

SEM5000AEU MyWatt Energy Manager for Europe 75A clamp transmitter + Receiver 75A, 200A, 350A 500A, 2000A 200KW
SEM6000AEU MyWatt Cloud  Energy Manager for Europe 75A clamp transmitter + Receiver + 10year Internet Service 75A, 200A, 350A, 500A, 2000A 2000KW
SEM5000AEUWIFI MyWatt Cloud  Energy Manager for Europe : WI-FI 75A clamp transmitter + Receiver + 2 year Internet Service 75A, 200A, 350A, 500A, 2000A Under Test
(No Approval)

sem5000A2US MyWatt Energy Manager for USA 2pc of 75A clamp transmitter + Receiver 75A, 200A, 350A, 500A, 2000A 200KW
SEM6000A2US MyWatt Cloud  Energy Manager for USA 2pc of 75A clamp transmitter + Receiver + 2 year Internet Service 30A, 75A, 200A, 350A, 500A, 2000A 200kW
SEM6000A3US MyWatt Cloud  Energy Manager for USA-3PHASE 3pc of 75A clamp transmitter + Receiver + 2 year Internet Service 75A, 200A, 350A, 500A, 2000A 200KW
SEM6000A2USWIFI MyWatt Cloud  Energy Manager for USA: WI-FI 2pc of 75A clamp transmitter + Receiver + 2 year Internet Service 75A, 200A, 350A, 500A, 2000A 200KW

under test



SEM5000A2US-LTE yWatt Cloud  Energy Manager for USA: LTE (or 3G) 2pc of 75A clamp transmitter + Receiver + 2 year Internet Service

+ 3G mobile line fee (extra)

75A, 200A, 350A, 500A, 2000A 200KW
SEM5000B2US MyWatt Energy Manager with PIT3000 for USA 2pc of 75A clamp transmitter + SEM3010 Receiver

+PIT3000 transmitter

75A, 200A, 350A, 500A, 2000A 200KW
SEM6000B2US MyWatt Cloud  Energy Manager with PIT3100 for USA 2pc of 75A clamp transmitter + sem3110 Receiver + 2 year Internet Service

+PIT3000 transmitter

75A, 200A, 350A, 500A, 2000A 200KW

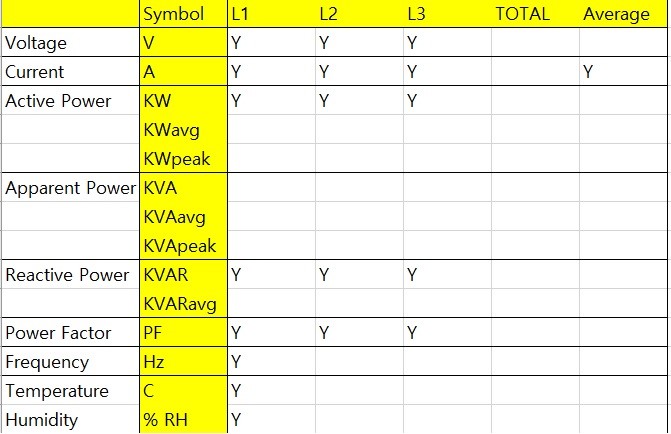

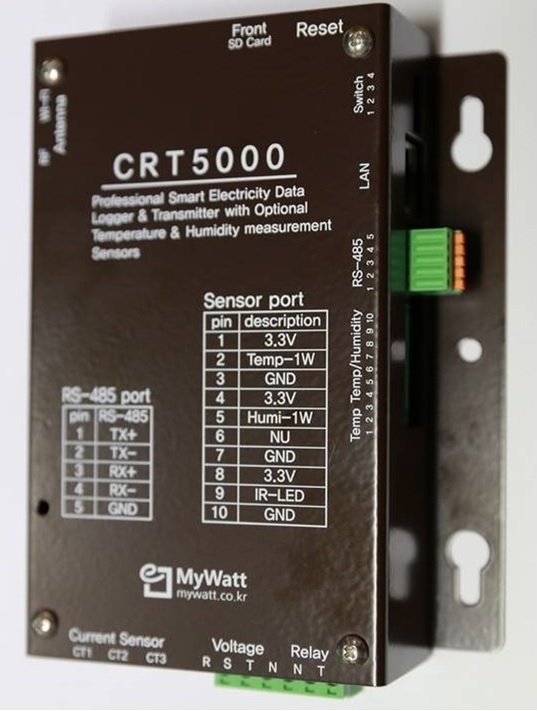

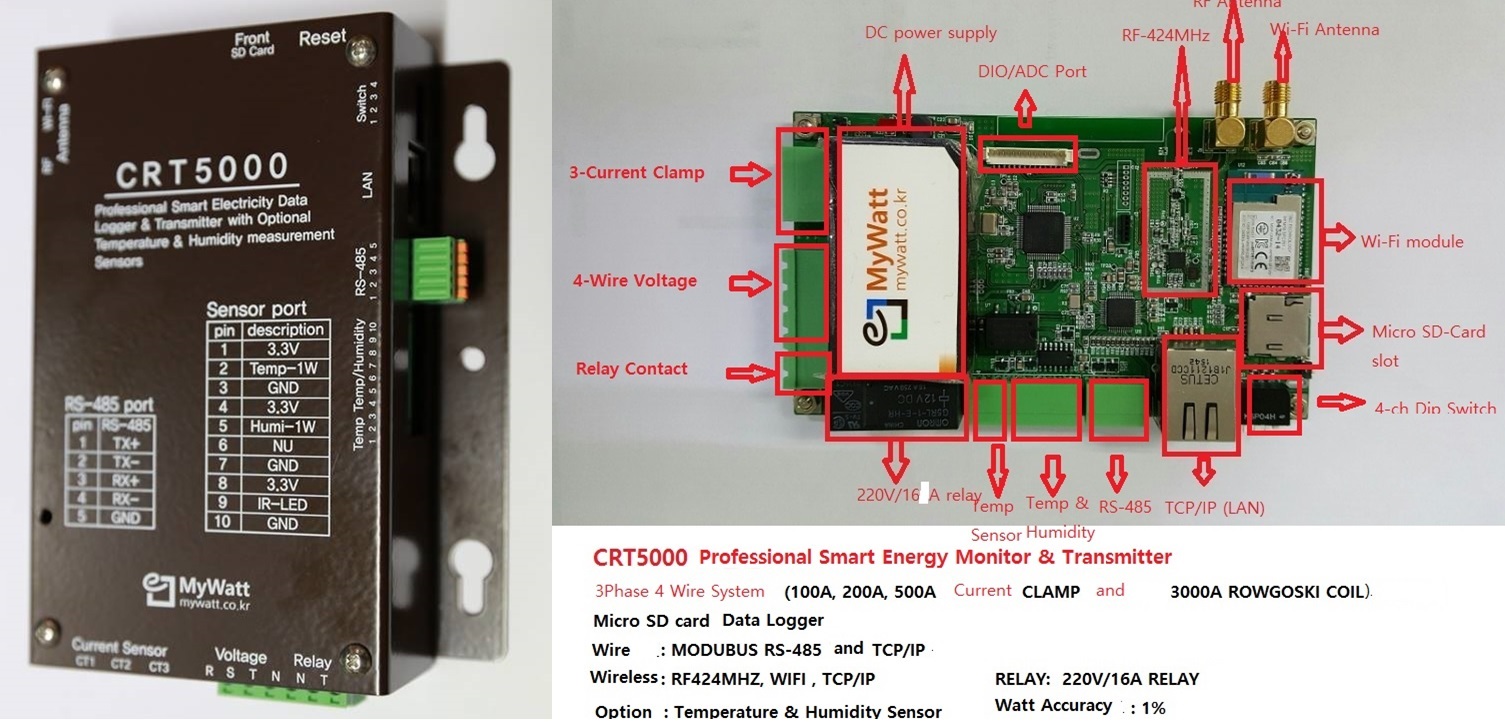

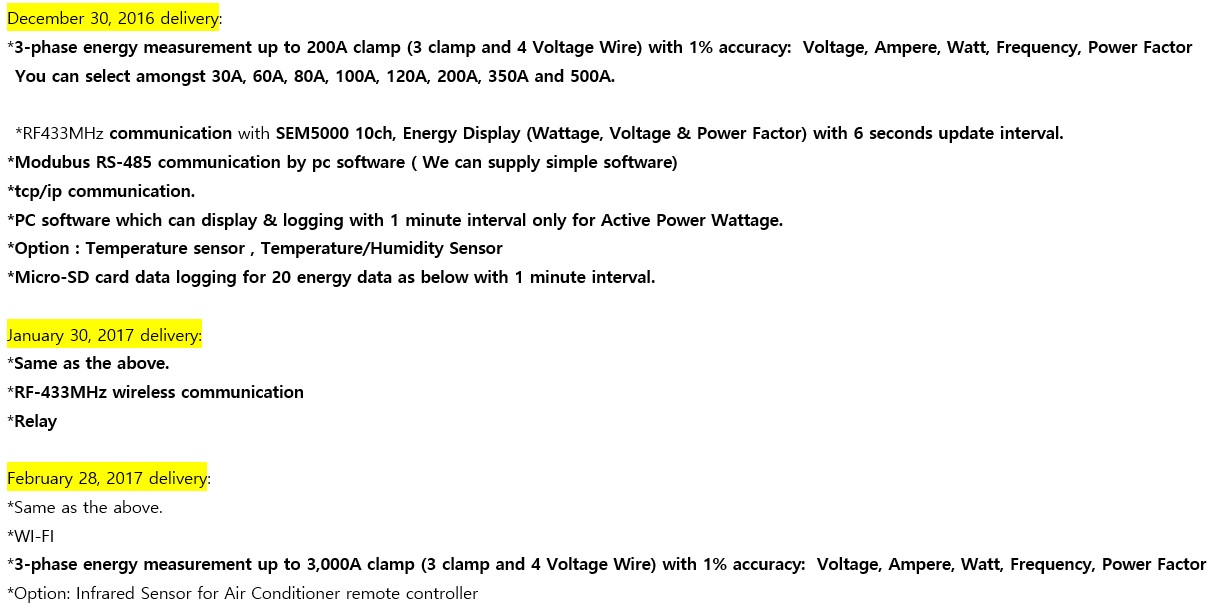

CRT5000 MyWatt 3-Phase 4 Wire Smart Electricity Energy Logger & Transmitter

Temperature & Humidity measurement

TCP/IP
MODUBUS RS-485
WI-FI




no battery use. 220 V adapter apply 30A, 75A, 200A, 350A, 500A, 2000A 200kW












MyWatt Clamp Type Wireless Transmitter
We use Clamp type wireless transmitter at the main control panel for to get the energy consumption with non-contact method and sent it to the receiver. 433MHz  frequency.
For 3-phase system, we need 3pcs of clamp.

Model Use Supply Price ($)
List Price

CRT5003
CRT5008

Wireless Transmitter
(battery life:
10 month)

measuring range: 0.1A ~ 75A

CLAMP30(30A), CLAMP75(75A) use only
CRT5020 Wireless Transmitter
(battery life:
10 month)

measuring range: 0.5A to 200A

CLAMP75(75A), CLAMP200(200A) use only
CRT5035
CRT5050

Wireless Transmitter
(battery life:
10 month)

measuring range:
1A to 500A
CLAMP350(350A), CLAMP500(500A) use only
CRT5600 Wireless Transmitter for Flow meter only for 4-20mA input
PAC1 Adapter for CRT3000 220V mains power for CRT3000 8
CLAMP30 Current Sensor
(10mm inner dia.)
30A clamp 20
CLAMP75 Current Sensor
13mm inner dia.)
75A clamp 20
CLAMP200 Current Sensor
(26mm inner dia.)
200A clamp 30
CLAMP350 Current Sensor(25mm inner dia.) 350A clamp 40
CLAMP500 Current Sensor
(35mm inner dia.)
500A clamp 50
CLAMP2000 Current Sensor

2000A clamp
Rogowski Coil









MyWatt Plug-in Type Wireless Transmitter (Option: on-off function)
Home Appliance normally use socket on the wall. The Plug-in type wireless transmitter is suitable for this purpose (433MHz).
Optional item: on-off function type with relay ( Other country type)


Model Detail Max. Ampere Use Price ($)
List Price
PIT3000 without control 15A Home Appliance Energy Measurement 30
PIT3100 on-off function included 15A Energy Measurement & Control 40



MyWatt Wireless Lamp Electricity Transmitter & Controller ( under development now)
Electric Lamp Energy Measurement & Control

Model Detail Use Price ($)

List Price

LAT3000 without control Lamp Energy Measurement 30
LAT3100 on-off control function Lamp Energy Measurement & Control 40


MyWatt PC Software (by using specially made cable)
You can reset the SEM3000 clock by connecting the PC with software.
You can control the Home Appliance by PIT3100 transmitter with software.
You can see and download daily/weekly/monthly data from sem3000 logger by software.
You can see the real time graph and download 1 minute data continuously to pc by software.

Model Detail Use Price ($)
SOFT3020 10CH. Graph Display 10ch, Graph Display and Receiver Setting
MyWatt Web Cloud Service for 10 channel or over
We can see day/week/month graph by Internet or smart phone.
We can control home appliance by smart phone. We can send SMS message
We can send Email message of Energy Consumption
Model Detail Use Price ($)
List Price
CLOUD-1 1CH -2CH  Graph Graph Measurement $20.00
CLOUD-3 3CH - 10CH Graph Graph & Email service include $30.00
SMS-1   SMS service by smartphone
Email Service   day/week/month total data by email notice
BACNET ADAPTER for building automation



Address: Rm608, Suntechcity Bldg., Dunchondaero 474, Jungwon-Gu, Gyeonggi Province, South Korea     Post code: 462-725
Company:   Korins Inc.    Tel: 031-777-1588   Fax: 031-777-1587

Shopping Mall: www.korins.kr   www.korins.com   c@korins.co.kr  www.smartwattmeter.com
