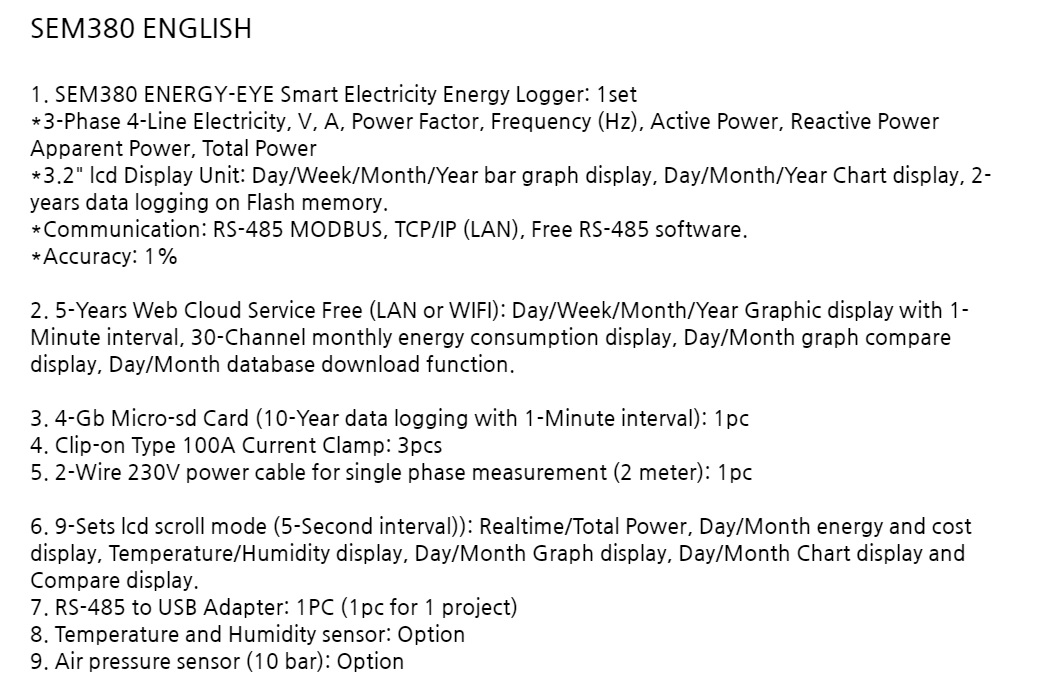

SEM380 English Catalog     2022 Catalog   Download File


WORLD 1st   Game Changer MyWatt  ENERGY-EYE  Cloud Energy Manager


 MOVIE1  PHOTO1 PHOTO2

  MOVIE2  MOVIE3 MOVIE4  PHOTO1  PHOTO2

  MOVIE5 MOVIE6  PHOTO1  PHOTO2

 MOVIE5  MOVIE6



KOREA INNOVATIONN FAIR 2022 DUBAI (JAN 16-18)

Catalog1     Catalog2

2023 FEB. NEW PRICE LIST             Wiring Method

*ENERGY-EYE : INTRODUCTION WORLD 1st   PRODUCT

PAYBACK WITHIN 6 MONTHS AND USE 20 YEARS FREE
(ROI: 40 TIMES)

*ENERGY-EYE : 2022 INTRODUCTION

YOU CAN SAVE OVER THAN 5% ENERGY COST (GAME CHANGER)





ENERGY-EYE PATENT :


1)23 MENU PAGE
2)10 MENU SCROLL DISPLAY WITH 5 SECONDS INTERVAL
3)WEB CLOUD SERVICE
 (REALTIME SERVICE,  365DAY DEVICE DATA DOWNLOAD SERVICE)
4)365 DAY DATA REPORT SOFTWARE(RS-485 Cable)      4-1)365 DAY WEB CLOUD SERVICE
5)PANEL MOUNTING WITHOUT METAL DRILLING
6)5 YEARS SD CARD FIRMWARE UPGRADE SUPPORT
7)LAN(RJ45) LINE WEB CLOUD - 5 YEARS FREE
8)2 YEARS DATA RECORD ON CPU FLASH-MEMORY
9)20 YEARS DATA RECORD ON SD-CARD WITH 1 MINUTE INTERVAL
10)SD CARD DATA GRAPHIC SOFTWARE - FREE SUPPORT
11)32 CHANNEL GRAPHIC SOFTWARE SUPPORT FOR 10 CHANNEL USERS
12)INSTRUMENT INSTALLATION ON SWITCH GRAR BOX
WITHOUT METAL DRILLING
13)WORKING AS ENERGY MANAGER
14)TEMPERATURE HUMIDITY DISPLAY
15)AIR PRESSURE DISPLAY
16)COMPARE DISPLAY(YESTERDAY/TODAY, LAST WEEK/THIS WEEK,
LAST MONTH/THIS MONTH)
17)TIMER ( 2 TYPES)
18)HI-LOW ALARM SETTING
19)CURRENT CLAMP WIRING MISTAKE AUTO DISPLAY
20)TOTALIZER RESET (ZERO RESET)
21)CT/PT RATIO CONTROL
22)TFT LCD GRAPHIC DISPLAY (DAY/WEEK/MONTH/YEAR)
23)TFT LCD CHART DISPLAY (DAY/MONTH/YEAR)
24)YEARLY ENERGY REPORT SUPPORT
25)FREE RS-485 SOFTWARE WITH 2 SECONDS INTERVAL
26)SEM390/392 MODEL SUPPORT 3LINE 4 WIRE 4 CHANNELS
(SINGLE PHASE 12 CHANNELS)
27)ENERGY-EYE INSTRUMET CAN MEASURE 6000A CURRENT

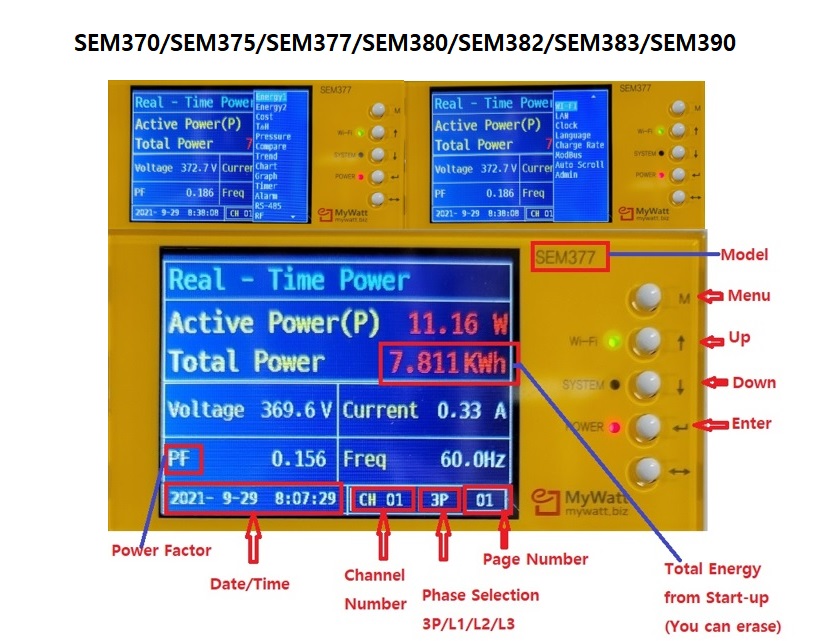

ENERGY-EYE LCD DISPALY 21 MENU PAGE:
1)REALTIME POWER(kW) AND TOTAL POWER(kWh)
2)APPARENT POWER AND REACTIVE POWER
3)TODAY/THIS MONTH ENERGY(kWh) AND COST DISPLAY
4)TEMPERATURE AND HUMIDITY DISPLAY
5)AIR PRESSURE DISPLAY
6)COMPARE DISPLAY(DAY/WEEK/MONTH)
7)GRAPH(DAY/WEEK/MONTH/YEAR)
8)CHART(DAY/WEEK/MONTH/YEAR)
9)PERIOD TIMER SETTING
10)WIFI SETTING
11)RS-485 CHANNEL SETTING
12)HIGH/LOW ALARM SETTING

ENERGY-EYE APPLICATION:
*ONE INSTRUMENT COULD COVER OVER THEN $10,000 ENERGY COST INSTALLATION AND COULD PROVIDE ENERGY REPORT EASILY WITH OWN
 SPECIAL SOFTWARE.
*OTHER MAKER'S INSTRUMENT ONLY PROVIDE TOTALIZER BUT ENERGY-EYE PRODUCT DISPLAY DAILY/WEKLY/MONTLY/YEARLY REPORT WITH INTEGRATED LCD DISPLAY AND SD-CARD LOGGING REPORT. ENERGY-EYE INSTRUMENT PROVIDE HOURLY/DAILY/MONTHLY/YEARLY REPORT BY LCD
*ENERGY-EYE PRVIDE 365DAYS REPORT SOFTWARE.
*ENERGY-EYE IS SIMILAR PRICE AS OF NORMAL SMART ENERGY METER.
*ENERGY-EYE PROVIDE 5 YEARS FREE WEB CLOUD SERVICE.
*ENERGY-EYE INSTRUMENT ALSO PROVIDE LTE ROUTER WHEN THE INTERNET SERVICE IS NOT AVAILABLE.
*ELECTRICITY COST IS INCREASING EVERY YEAR

1)HOME
2)BUILDING(SMALL/MEDIUM/BIG)
3)FACTORY(INDUSTRY 4 REVOLUTION, BIG ENERGY CONSUMPTION ENERGY MONITOR)
4)INDUSTRIAL(SMART FARM,MUSHROOM FACTORY, FISHERY FACTORY, ENERGY SAVING DEVICE INSTALLATION MONITORING AND INSPECTION, ENERGY MANAGEMENT.


ENERGY-EYE: WIRING

ENERGY-EYE 2023 FEB NEW PRICE LIST


2022 Smart Energy Monitor Comparision
Item MyWatt SEM388 Simens
3Phase 4-Line Energy Meter Yes Yes
RS-485 communication Yes Yes
WIFI communication Yes Option
LAN (RJ45) communication Yes Option
16 GB Micro -SD card data logger Yes No
CPU Flash memory (1 MB) Yes No
Lcd display Tft lcd Fixed lcd
Display menu 30 2
Menu display scroll mode Yes No
Clamp (100A ~ 500A) Yes Yes
Clamp (2000A  ~ 6000A) Yes No
365 Day data report software Yes No
Temperature display Yes No
Humidity display Yes No
Pressure display Yes No
Easy panel mounting Yes No
Software (single channel) Yes Option
Software (multi channel) Yes Option
Alarm mode Yes Option
Timer mode Yes Option
Compare mode Yes No
Daily/Weekly/Monthly/Yearly report Yes No
Web cloud service  Yes Option
Retail Price (including 100A clamps) $300 $400

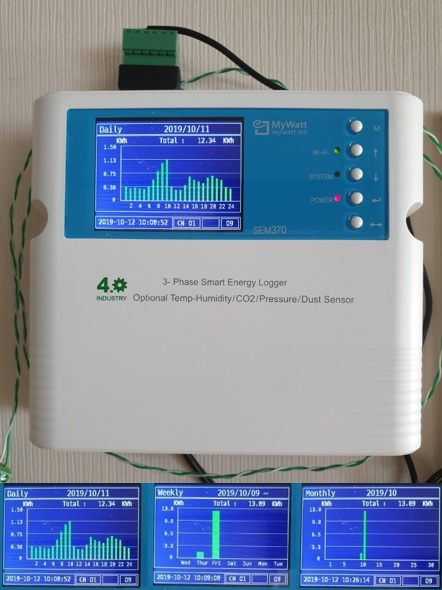

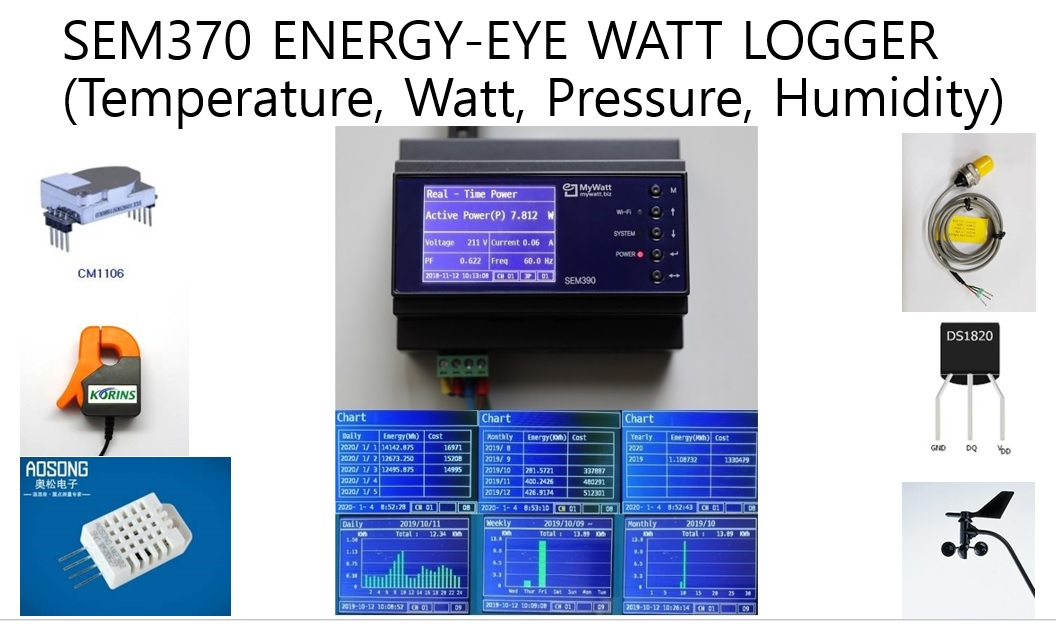

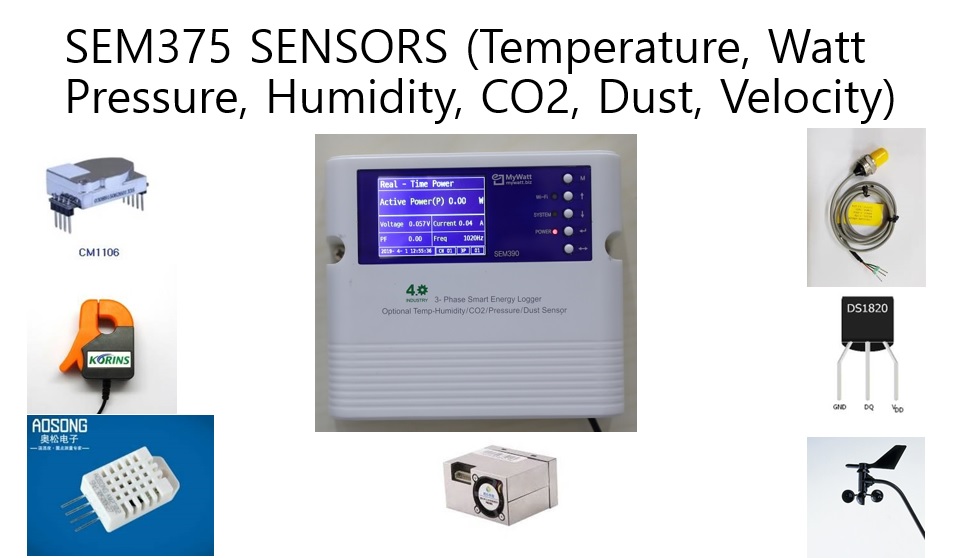

SEM370 (2.4" LCD)   SEM375 (2.4" LCD)
Shopping Mall    Patent Shopping Mall     Patent

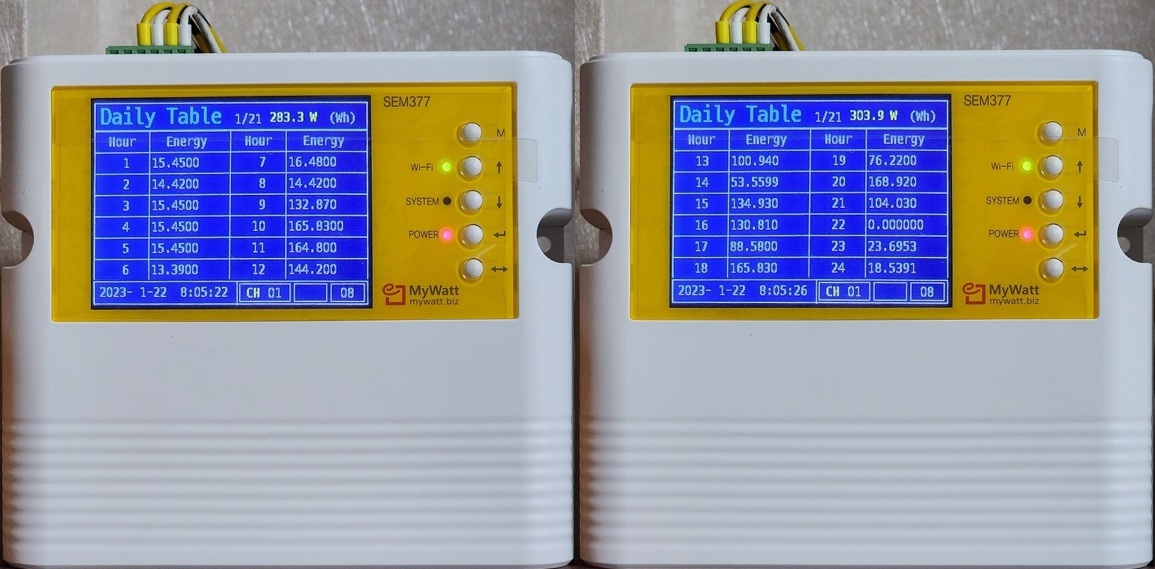

SEM377 (3.2" LCD)
FULL SIZE PHOTO

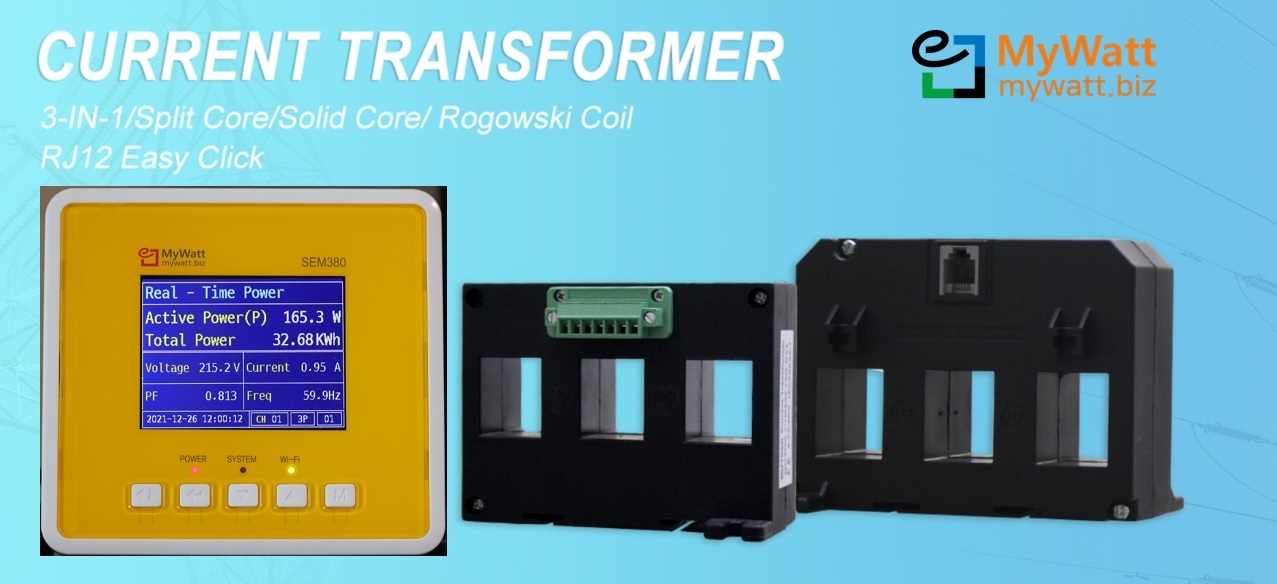

SEM380 (3.2" LCD)
FULL SIZE PHOTO

Shopping Mall    Patent
Shopping Mall        Patent

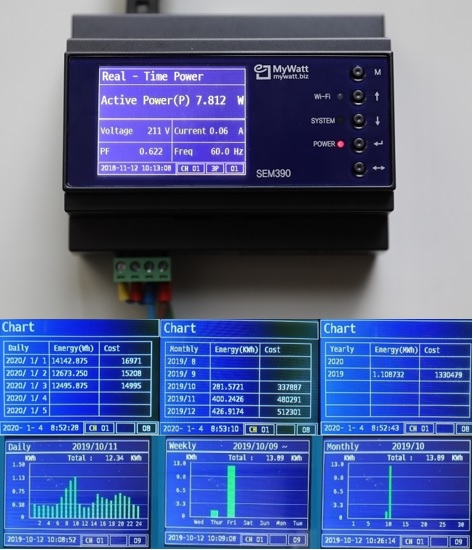

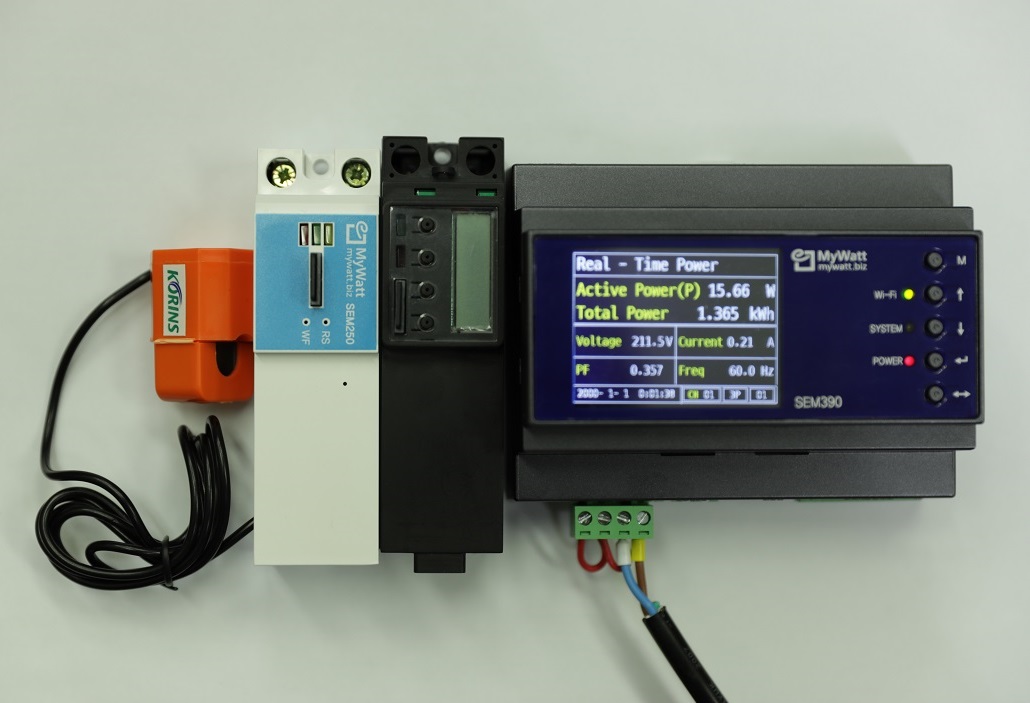

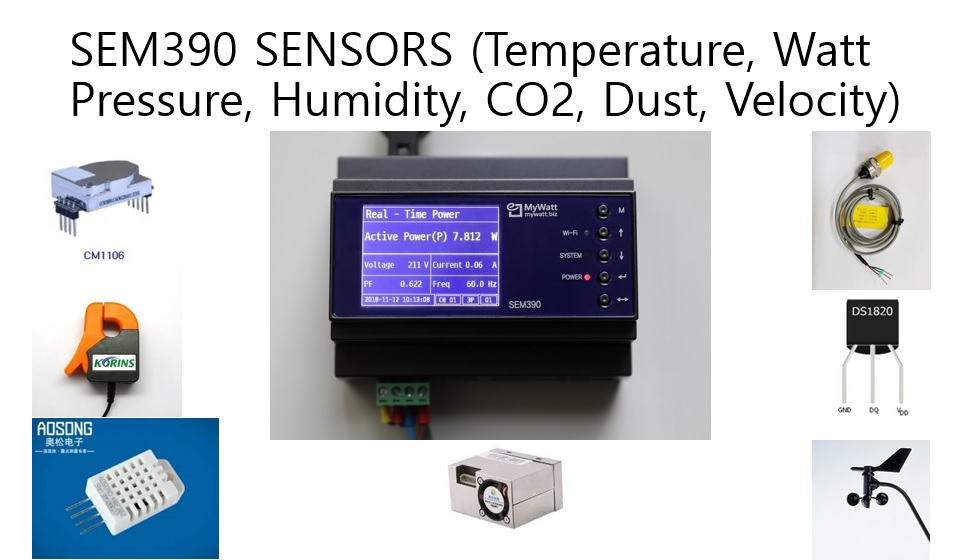

  SEM390 (4-CHANNEL)
SEM388 (4.0" LCD)
FULL SIZE PHOTO
  Patent Pending     Supply Time: Feb. 2022

Shopping Mall      Patent

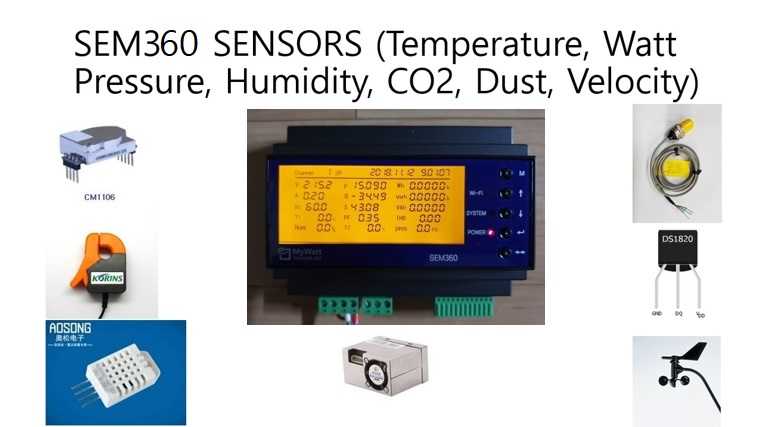

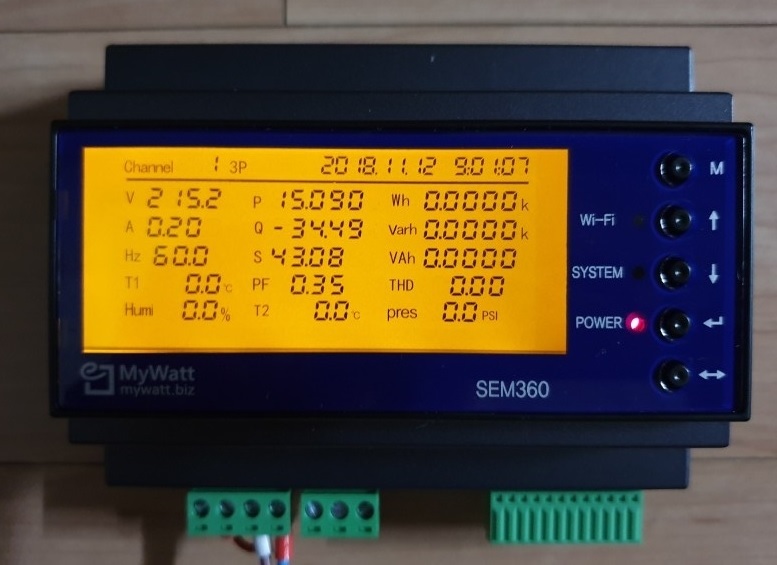

SEM360 (5" LCD) SEM3000 (10-Channel)
Shopping Mall
Shopping Mall                      Korea Patent

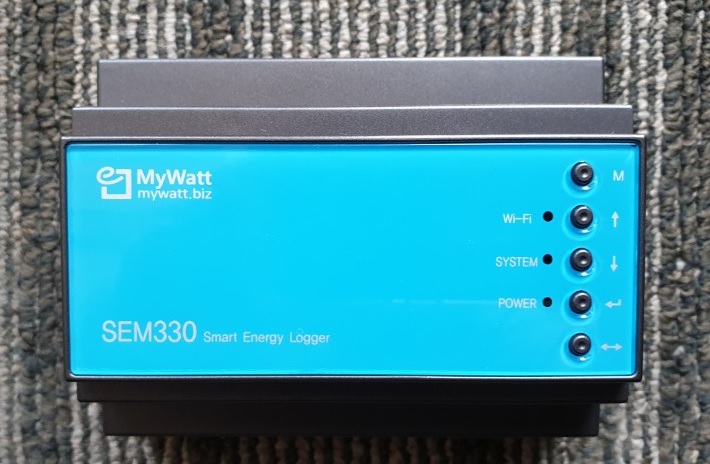

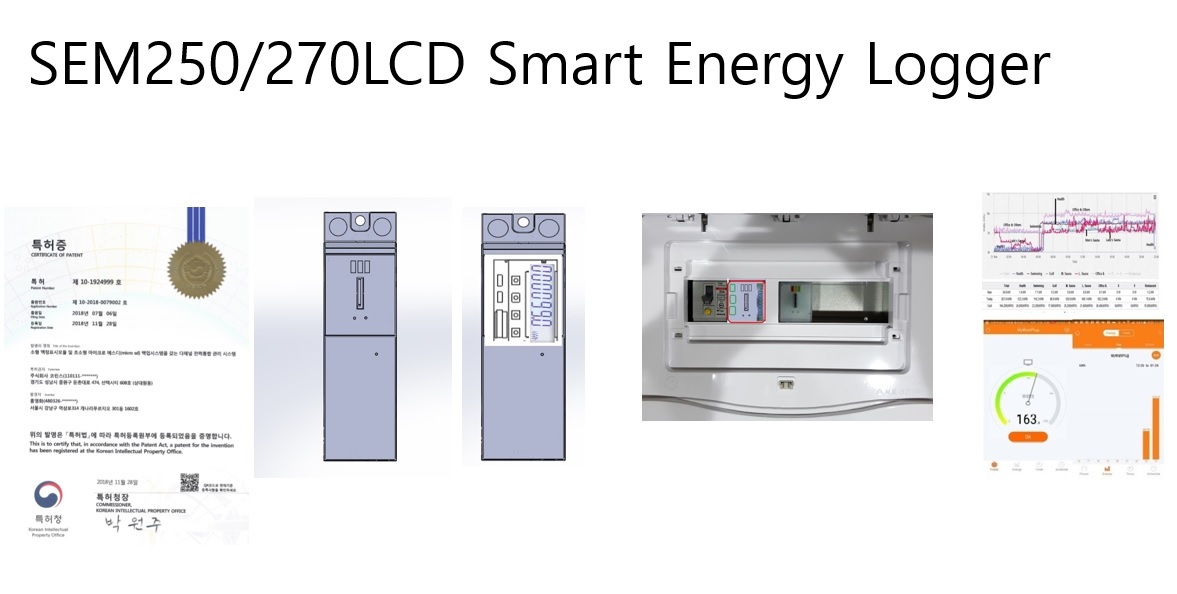

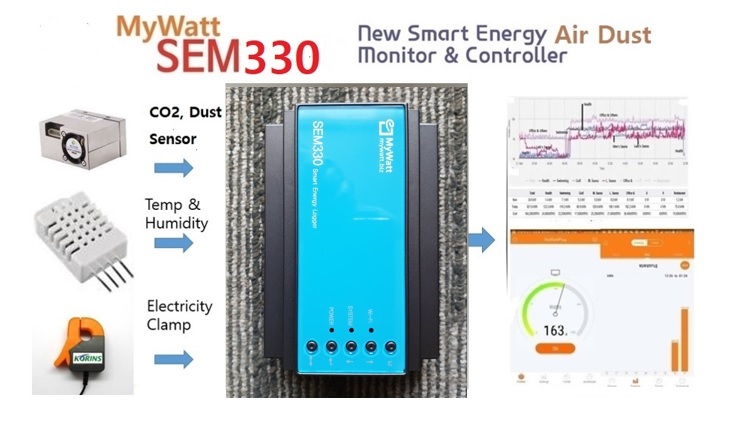

SEM330 (NO DISPLAY) SEM250 (SINGLE PHASE - 3 CHANNEL)
Shopping Mall
Korea, Japan Patent

CRT5000 (NO DISPLAY)       CRT5000 SEM400 (3.2" LCD )
Shopping Mall
Multipurpose Smart Energy Logger

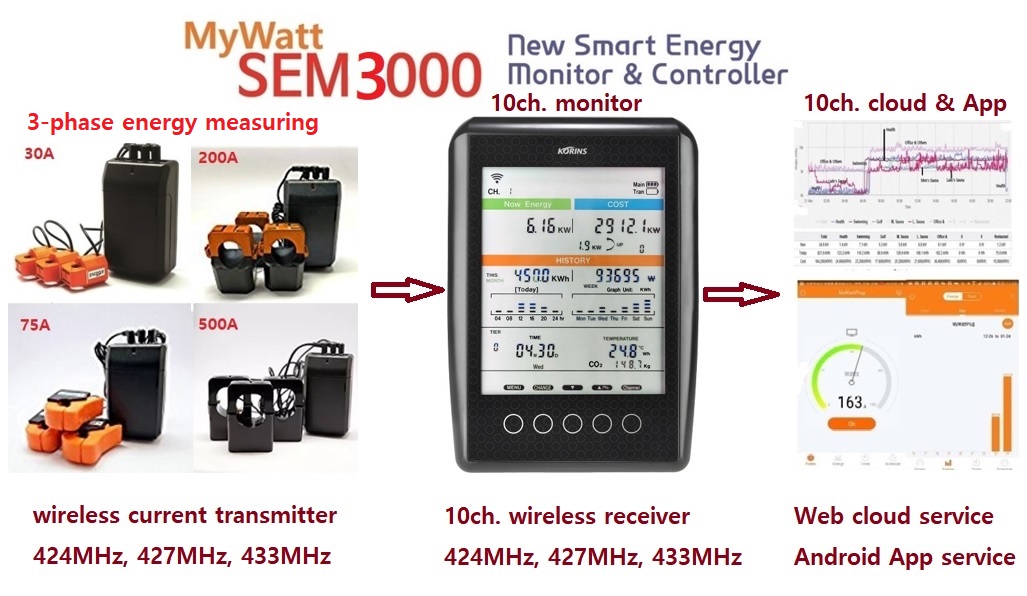

MyWatt 10 channel Wireless Energy Manager measures both household and industrial power usage by installing a current sensor where the Electric meter is attached to. The devise transmits the measured power wirelessly to the receiver located within 70m to provide the estimate of instantaneous power, total power, daily/monthly electricity cost and graphically display the power usage of the previous day.  One devise may have a maximum of 10 sensors attachments to enable monitoring the data of 10 channels wirelessly. If the software, sold separately, is used in conjunction with a provided USB cable, it can graphically display the data of 1 hour/2 hour/1 day/1 month/1 year periods. Additionally, if the Gateway, provided separately, is used to connect to internet, it enables Cloud service that can monitor 1 day and 1 week graphs from the website remotely for a maximum of 10 channels.

There are many home appliances manufactured more than 5 years ago that are being used today which consume more than twice the electricity than the recently made. SEM3000 can show us all of those and enable us the electricity bill savings at least 20%.

SEM3000-EN, SEM3010/SEM3000 English- : 17:34

  1. 17:34

    SEM3000 Operation Manual (2019 V6.7)

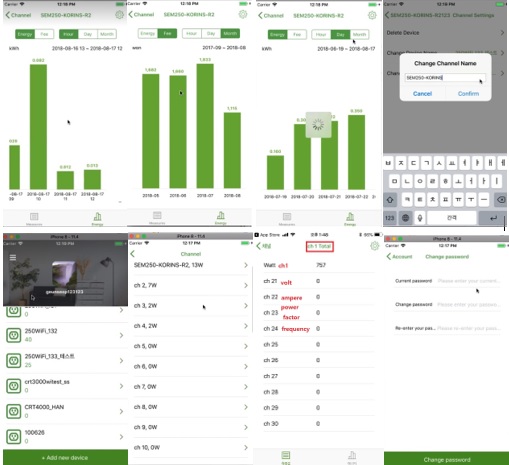

Android & IOS App is available now

 New Web Cloud Service : http://mywatt.org which is linking to Android App.
 Application name : "mywatt30" for SEM3000     mywattpro for SEM250 and SEM370



Special Characteristic of SEM3000

       SEM3000 lcd display function
